SAMIFLEX Elastic Couplings

SAMIFLEX Elastic Couplings

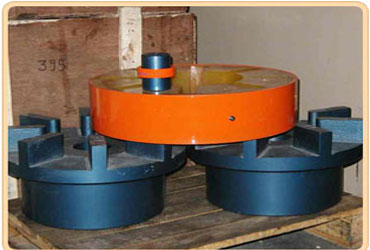

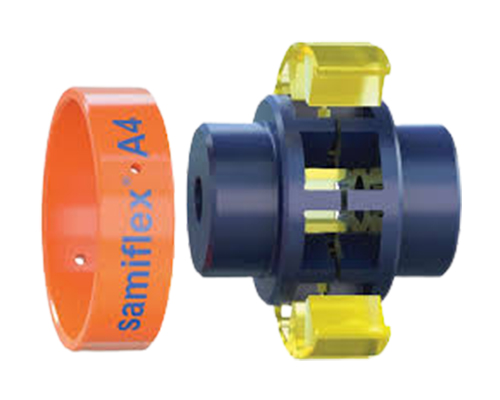

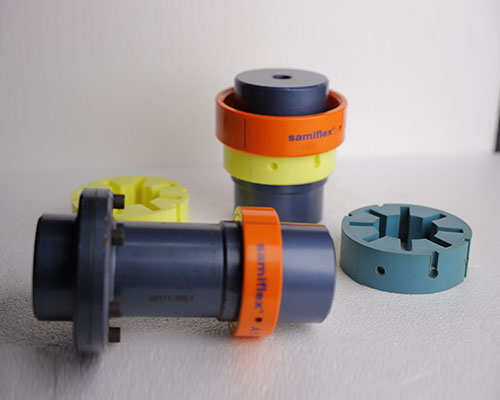

The new Samiflex elastic couplings provide a significant advantage by allowing the inspection and replacement of the central element without the need to disturb the driver or driven equipment. This feature minimises the maintenance process and reduces downtime making it a convenient option for various applications.

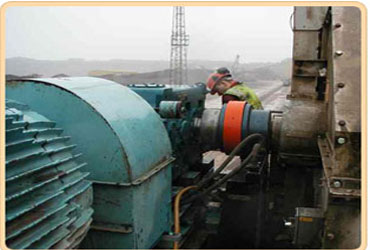

Samiflex elastic couplings have gained wide popularity and are utilized in diverse applications. from light-duty pumps to high-torque drives like Bucket wheel excavators these couplings have demonstrated their versatility and reliability.

Elastic Couplings

The development of Samiflex elastic couplings is the result of 27 years of experience and continuous improvement. Through their involvement with various industrial sectors they have gathered valuable insights and feedback allowing them to refine their products and ensure their effectiveness across different applications.

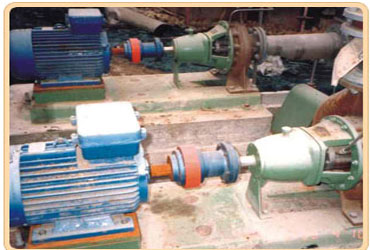

Increased productivity by saving time whilst replacing and installation of the central elastic member. Proven its worth under the most difficult operating conditions, Samiflex has been successfully introduced in compressors, paper plants, chemical plants, steel plants.

SAMIFLEX Elastic Couplings Video



ETP Classic Bushes were the first to be introduced, followed by ETP Classic R (in stainless steel for food & chemical industries.)

ETP Express / ETP Express R

To enable faster assembly/dismantling, ETP improved the basic concept & introduced ETP Express. This model has only a single screw to tighten/release the bush from the shaft. Suitable for shaft sizes from 15 to 100 mm, and in inch series. Also available in SS construction – Ideal for Food/Pharma/Printing & Chemical industries.

ETP Power

ETP-POWER is available as standard for shafts 15-40mm. Runout ≤0.03mm. Number of mountings 200-500(size dependent). ETP-POWER combines quick mounting with a high radial load capacity due to the specially developed pressure medium.

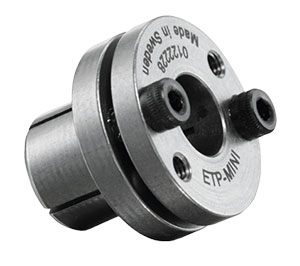

ETP Mini

To meet the demands of the industry – ETP also offers MINI (for shaft diameters from 6 to 14mm), based on mechanical principles.

ETP Hyloc

ETP-HYLOC is designed for Heavy & Dynamic loads (for shaft diameters from 50 mm onwards), Backlash-free, ensuring high radial force capacity, Quick changes, Accurate positioning combined with Good runout. Very successfully being used in India at Jindal Steel Power, Bhushan Steel, Tri Metal – in their Tube rolling mills for quick change of rollers in the Tube rolling mill. Proven, acclaimed & used successfully Internationally.

ETP Octopus

ETP-OCTOPUS is available as standard for shafts 30-100mm.Number of mountings 100,000 - 500,000.(pressure dependent). ETP-OCTOPUS is easy to build in, as no hub is required, and allows for fast, frequent and accurate positioning. Cutomized designs are offered on request.
